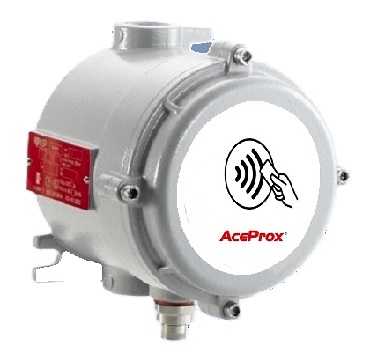

ATEX RFID Reader
In cooperation with the German specialist for petrochemical and oil industry BARTEC we offer an ATEX Multi-RFID reader according to ATEX II 2 G/Ex db IIC T6 Gb and ATEX II 2 D/Ex tb IIIC T85°C IP66 standard.
Can be used in tank farm areas and other ATEX classified zones.
Reading techniques such as MIFARE®- and NFC UID, MIFARE® R/W, EM4200/Atmel 5577 and HID Prox® 26-37bit are available.
Of course, as with all our ID readers, the multi-output formats are also selectable here.
The compact design also allows an easy installation.
Attributes
- Reading distance up to 15 cm depending on reading technique
- 3 LEDs and 1 Buzzer can be steered externally
- Continous or single output mode
- Up to 14 Output Formats supported depending on reading technique
- Variable operating voltage of 5 -13.6VDC
- Compact Dimensions
Application ranges
- Security Systems, i.e. access control
- Personnel time recording
- Operator identification
- Identification in outdoor areas
| Buzzer | Yes |
|---|---|
| Buzzer kontrolle | Cable |
| Dimensions (LxBxH) mm | Reader: 160 x 131 x 160 additional screw connection |
| Frequency | 125 kHz; 13,56 MHz |
| Humidity | 10 – 95% |
| Interface | Wiegand , Magstripe emulation, Fast Magstripe RS232, Clock/Data, Crosspoint, EIA and TTL Levels |
| LED | 3 |
| LED Control | Cable |
| Operating Temperature Range | -31°C to +60°C |
| Operating Voltage | 5 – 13.6V DC, 80-100mA |
| Protection Class | IP66 |
| RFID Transponders Supported | MIFARE®- and NFC UID, MIFARE® R/W, EM4200/Atmel 5577 and HID Prox® 26-37bit |
| Storage Temperature Range | -31°C to +60°C |
| Transponder ID Code | 10-digit in Hex or 13-digit in Decimal-Code or Wiegand Format Code |
| Type ofTransponder | Passive Transponder |
| Weight (in g) | 2140 |
